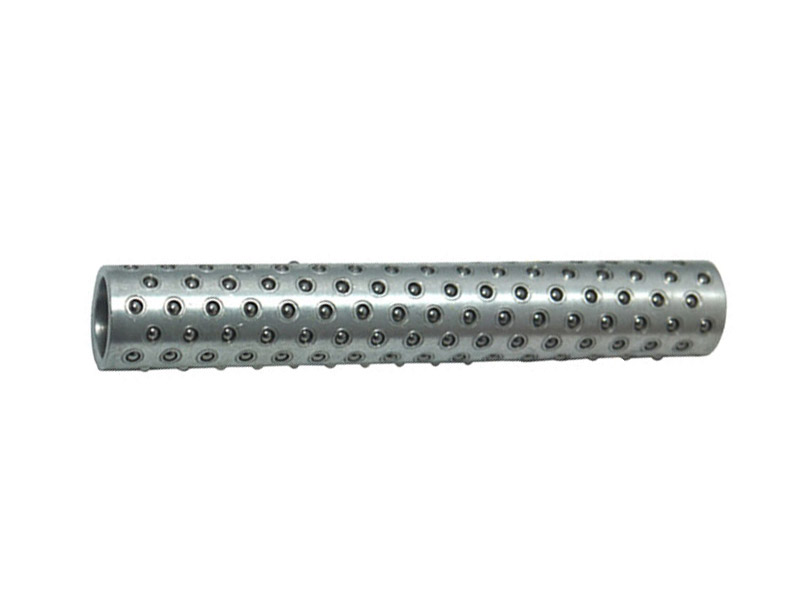

FZL Aluminum Cage Ball Retainer Bush
- Max Load Capacity: 230N/mm2
- Shrink Fit: 0.01mm~0.02mm
- Max Sliding Speed: 6m/s
- Coef Friction: 0.01~0.08
Specifications
FZL Ball Retainer
Structure: Aluminum Retainer + Steel Ball
This is an aluminum based material, on which the rollers are arranged orderly in certain angle and intervals. Moreover, the retaining technique is improved that dropping of the rollers can be thoroughly prevented. The friction is low and can move freely both in redial and in axial directions, and the bearing is in high precision. This is a young generation of the roller bearing which can roll in high speed, and is used in rolling frame of cold impact molds, high precision machine tools and their accessories.
The steel ball array is mainly divided into two categories: spiral array and straight line array.
Application:
FZL Ball Retainer Bearing & Bush is a new generation replacement of guide pin bush. With high speed movement, this is mainly used in high precision punching tool, high precision machine tool, etc.
Structure: Aluminum Retainer + Steel Ball
This is an aluminum based material, on which the rollers are arranged orderly in certain angle and intervals. Moreover, the retaining technique is improved that dropping of the rollers can be thoroughly prevented. The friction is low and can move freely both in redial and in axial directions, and the bearing is in high precision. This is a young generation of the roller bearing which can roll in high speed, and is used in rolling frame of cold impact molds, high precision machine tools and their accessories.
The steel ball array is mainly divided into two categories: spiral array and straight line array.
Application:
FZL Ball Retainer Bearing & Bush is a new generation replacement of guide pin bush. With high speed movement, this is mainly used in high precision punching tool, high precision machine tool, etc.
Technical Data
â–ºTechnical Data:
| Max Load Capacity | 2 30N/mm2 |
| Shrink Fit | 0.01mm~0.02mm |
| Max Sliding Speed | 6m/s |
| Coef Friction | 0.01~0.08 |
| Rolling Diameter Deviation | <0.002mm |
| 1.Guid Tube: | MATERIAL: GCR15 HARDNESS: HRC 62-66 MEASUREMENT: USING TRADITIONAL MEASUREMENT METHOD (O.D.MICROMETER CALIPER, I.D. MICROMETER CALIPER) TO MEASURE HOUSING BORE Dh, SHAFT DIAMETER AND STEEL BALL DIAMETER d , REQUESTING df+2d -Dh=0.01-0.02mm. 0 0 |
| 2. Shaft: | MATERIAL: GCr 15 HARDNESS: HRC 62-66 SHAFT DIAMETER TOLERANCE: h5. |
| 3. Steel Ball: | MATERIAL: GCr 15 HARDNESS: HRC 62-66 STEEL BALL OUTSIDE DIAMETER TOLERANCE: +0.001/-0.001mm |
